In the bottled water and industrial liquid packaging sector, 5-gallon (approx. 18.9L) PC or PET water bottles are the true workhorses of logistics. A seemingly simple bottle must withstand high-speed filling lines, rough handling, and repeated washing and recycling. With raw material price volatility and tightening environmental regulations, “lightweighting without sacrificing strength” has become the universal goal for bottle manufacturers. How, then, can a superior 5-gallon water bottle injection mold reduce bottle weight from 720g to 650g or lower, while ensuring high transparency, zero stress cracking, and passing over 5,000 drop test cycles? KSHOW, rooted in Taizhou—China’s Mold Capital—with over 15 years of large precision mold-making experience, breaks down the core technical elements in this article.
A 5-gallon bottle typically stands over 400mm tall with a wall thickness of just 1.2–1.6mm, making it a classic large, deep-cavity, thin-walled part. Melt must travel an extremely long flow path from the gate to the bottle base. Poor mold design easily results in short shots from cooled flow fronts, weak weld lines, or hazy bases. KSHOW’s solution relies on Moldflow-driven multi-stage injection profiling—by precisely segmenting injection speeds, the melt front is kept advancing at a stable velocity, avoiding hesitation or jetting. Simultaneously, we use a large-diameter hot runner valve-gate system to ensure packing pressure is effectively transmitted to the base, keeping shrinkage within 0.3% and base wall thickness uniformity at ±0.05mm.
The bottle handle is not a separate assembly but a load-bearing structure molded integrally with the body. The handle zone features abrupt wall thickness changes, making it prone to sink marks and stress concentration. KSHOW applies progressive wall thickness optimization at the transition zone and deploys independent cooling circuits for intensified heat extraction. For demolding, a hydraulic cylinder-driven side slide core-pulling mechanism works with nitrogen-assisted ejection to ensure the bottle releases smoothly without whitening or deformation. For PET bottle applications, KSHOW also offers injection-stretch-blow integrated mold solutions that further enhance toughness and drop performance.
In the second half of 2025, a South American bottled water company operating over ten filling lines (“Client L”) launched a bottle self-manufacturing project. The pain point was classic: purchased bottles suffered large wall thickness variations between batches, causing frequent jams on the filler and a shipping breakage rate of 3.2%. Upon receiving the inquiry, KSHOW designed a single-mold two-cavity 5-gallon PC water bottle injection mold, targeting 680g bottle weight and 48-second cycle time. We used ASSAB S136 ESR mirror-grade steel for the cavities, with taper interlocks and precision guide components to ensure clamping accuracy. The first trial achieved a weight tolerance of ±2g and a drop test pass rate of 99.6%. The entire project, from contract to mold shipment, took only 42 days. Client L has since reduced breakage to under 0.5%, saving over USD 350,000 annually on procurement costs.
Many buyers focus solely on mold price, overlooking three details that profoundly affect long-term ownership cost:
1. Cooling Channel Anti-Corrosion Treatment. Water bottle molds circulate large volumes of cooling water over long runs. Without anti-corrosion treatment, rust will reduce cooling efficiency by over 20% within a year. KSHOW applies stainless steel inserts or electroless nickel plating to all cooling channels, ensuring zero decay in cooling performance over a decade.
2. Redundant Venting System Design. Large bottle molding generates enormous gas volumes. We machine multi-stage vent grooves at the parting line and core inserts, supplemented by vacuum-assisted venting, to completely eliminate gas traps and burn marks.
3. Standardized and Quick-Change Wear Parts. Valve pins, seals, and other wear items use international standard specifications, allowing customers to source replacements locally without waiting for OEM parts.
Global Delivery and Local Support

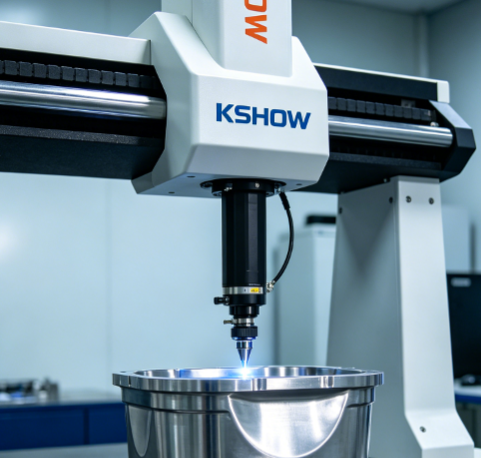

KSHOW’s Taizhou Huangyan facility houses a 1,600-ton clamping press, multiple large gantry CNC machines, and Zeiss CONTURA CMMs. Maximum mold machining dimensions reach 2,500mm × 2,000mm, with single mold weight capacity over 20 tonnes. Recently, our service engineers completed a remote video-guided commissioning for a Central Asian client’s water bottle mold, going from uncrating to qualified product in just 6 hours.
